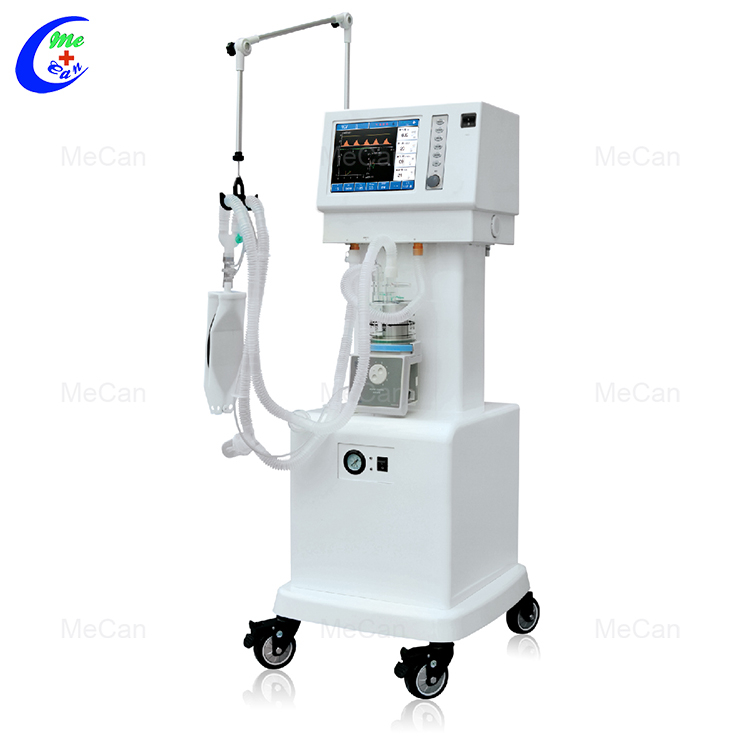

Medical Ventilator ICU Ventilators
Model:MCS0151
Display Mode: 10.4 inch High-denfinition TFT color LCD screen display
VentilationMode: VCV,PCV,SIMV,PSV,PSV+SIMV,CPAP
Ventilation Function: PEEP,SIGH, IRV, IP,Standby
Ventilation Parameter:
| Tidal volume | 20~1800 ml |
| Rate | 2~120bpm |
| SIMV rate | 2~120bpm |
| I:E | 4:1~1:8 |
| Pressure trigger sensitivity | -10-20cmH2O |
| Flow trigger sensitivity | 1-20L/min |
| PEEP | 0~25 cmH2O |
| Pressure range | 3~50 cmH2O |
| Pressure limitation | 5~60 cmH2O |
| Pressure slope | 1~10 gear |
| Flow rate setting | 1~10 gear |
| Expiratory trigger sensitivity | 10%-90% |
| Time control | 1~10s |
| SIGH | 1.5 times the inspiratory time (60-120 adjustable) |
| Inspiratory platform | 0~50% |
| Oxygen concentration | 21%~100% |
Parameters for ventilation monitoring:
Expired tidal volume, Inhale tidal volume, minute ventilation volume, IPPV rate, SIMV rate, total respiratory rate, autonomous inspiratory rate, I/E, peak pressure of airway, average pressure, PEEP, inspiratory trigger pressure, Inspiratory platform, oxygen concentration, battery capacity, pressure - time waveform, flow rate - time waveform, flow-volume loop, pressure-volume loop
Security Alarm System:
| Oxygen concentration | Upper limit setting range | 21%-99% |
| Low limit setting range | 15%-80% |
| Airway pressure alarm | Upper limit setting range | 1-60cmH2O |
| Low limit setting range | 0-50cmH2O |
| Minute ventilation volume alarm | Upper limit setting range | 1-30L/min |
| Low limit setting range | 0-29L/min |
| Tidal volume | Upper limit setting range | 10-2000ml |
| Low limit setting range | 0-1800ml |
| Respiratory rate | Upper limit setting range | 10-99bpm |
| Low limit setting range | 0-50bpm |
| Sustained high-pressure alarm | It will give alarm when stress have consistently been higher than 30 cnH2O |
| Suffocation alarm | Low pressure of Air alarm |
| Gas shortage alarm | Power alarm; Intubation off alarm |
| Low pressure of Oxygen alarm | Battery voltage alarm |
Production line of our ventilator
